USA Made Reproduction 1939 Zenith "hook" Push Button
USA Made Reproduction 1939 Zenith "hook" Push Button
Regular price
$7.76 USD
Regular price
$9.99 USD
Sale price
$7.76 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

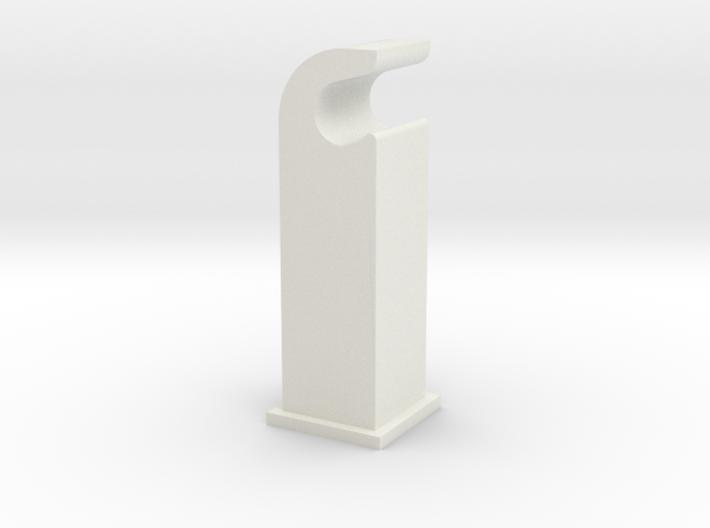

USA Made Reproduction 1939 Zenith "hook" Push Buttons
The long hook pushbuttons go on the left of the dial. If your radio has 8 pushbuttons on the left, then two more are needed for the right side of the dial.
These knobs are 3D printed and can polished, or spray painted to color match or to adjust level of gloss.
The short hook pushbuttons are located on the right side of the dial. They push onto a thin switch slider. Look for them below listed in the "Related Products" section.
If these are missing on your radio, then probaby the part of the switch that they push onto is broken also.
These slides have a little brass eyelet in them. Four of the slides have the eyelet closer to the short end, and two have the eyelet closer to the long end.
If your radio has 6 of the short pushbuttons on the right of the dial, it also has 6 of the switch slides. If your radio has 8 pushbuttons on the right of the dial, it still only uses 6 switch slides. The 2 buttons to the left of the 6 short buttons are long buttons for the On/Off switch.
See the switch slide description for instructions on replacing them.
models: 7S323, 7J328, 7S342, 7S343, 7S363, 7S364, 7S366, 7J368, 8S359, 9S307, 9S324, 9S367, 9S369, 12S370, 12S371, 12S345, 15S346, 15S372, 15S373
Dimensions:
long buttons: 5/16" square, 1-3/16" long
The long hook pushbuttons go on the left of the dial. If your radio has 8 pushbuttons on the left, then two more are needed for the right side of the dial.
These knobs are 3D printed and can polished, or spray painted to color match or to adjust level of gloss.
The short hook pushbuttons are located on the right side of the dial. They push onto a thin switch slider. Look for them below listed in the "Related Products" section.
If these are missing on your radio, then probaby the part of the switch that they push onto is broken also.
These slides have a little brass eyelet in them. Four of the slides have the eyelet closer to the short end, and two have the eyelet closer to the long end.
If your radio has 6 of the short pushbuttons on the right of the dial, it also has 6 of the switch slides. If your radio has 8 pushbuttons on the right of the dial, it still only uses 6 switch slides. The 2 buttons to the left of the 6 short buttons are long buttons for the On/Off switch.
See the switch slide description for instructions on replacing them.
models: 7S323, 7J328, 7S342, 7S343, 7S363, 7S364, 7S366, 7J368, 8S359, 9S307, 9S324, 9S367, 9S369, 12S370, 12S371, 12S345, 15S346, 15S372, 15S373
Dimensions:
long buttons: 5/16" square, 1-3/16" long
