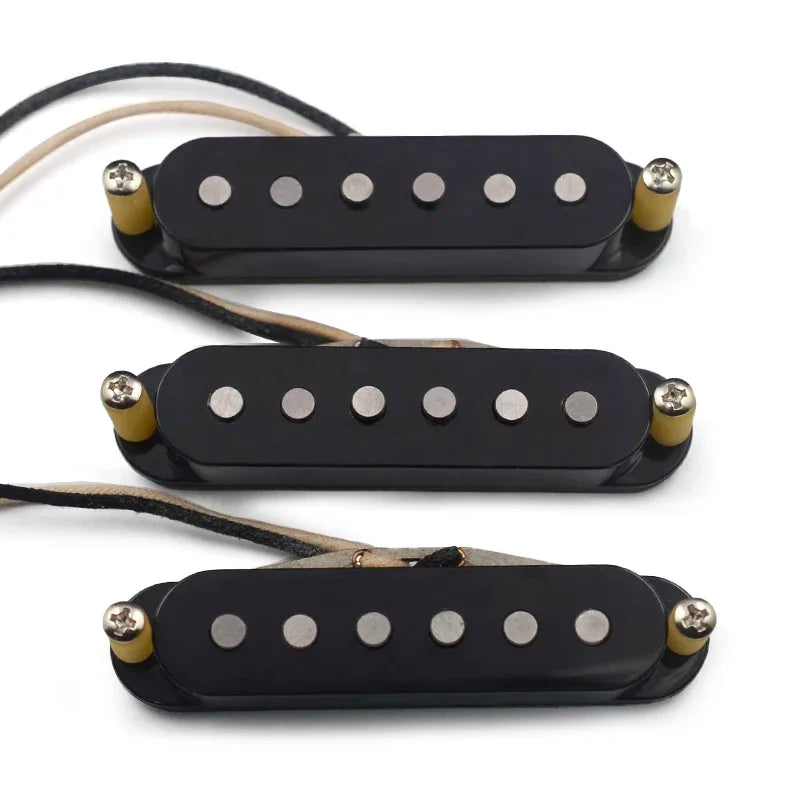

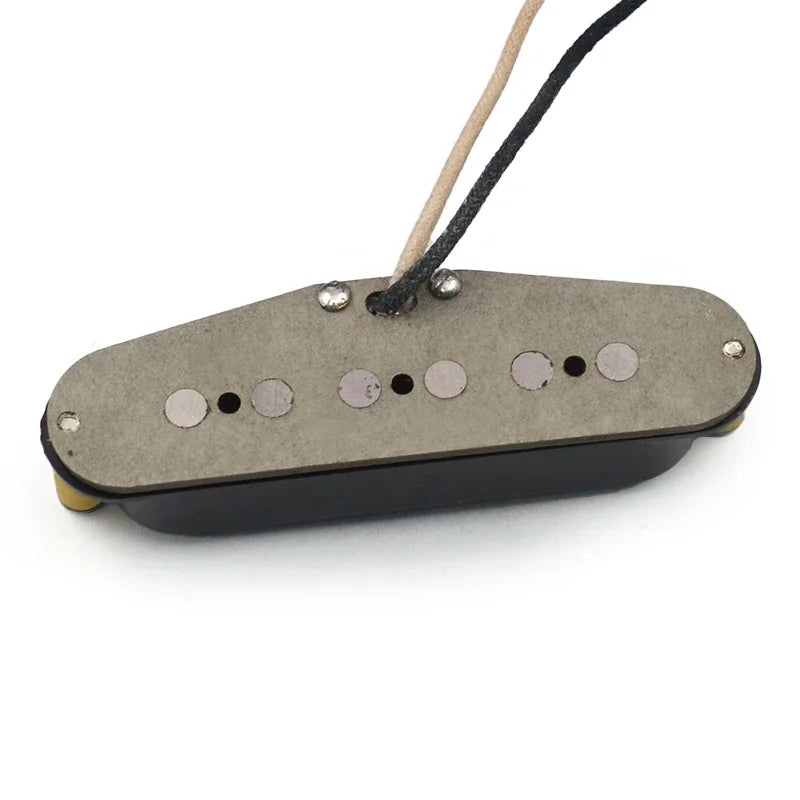

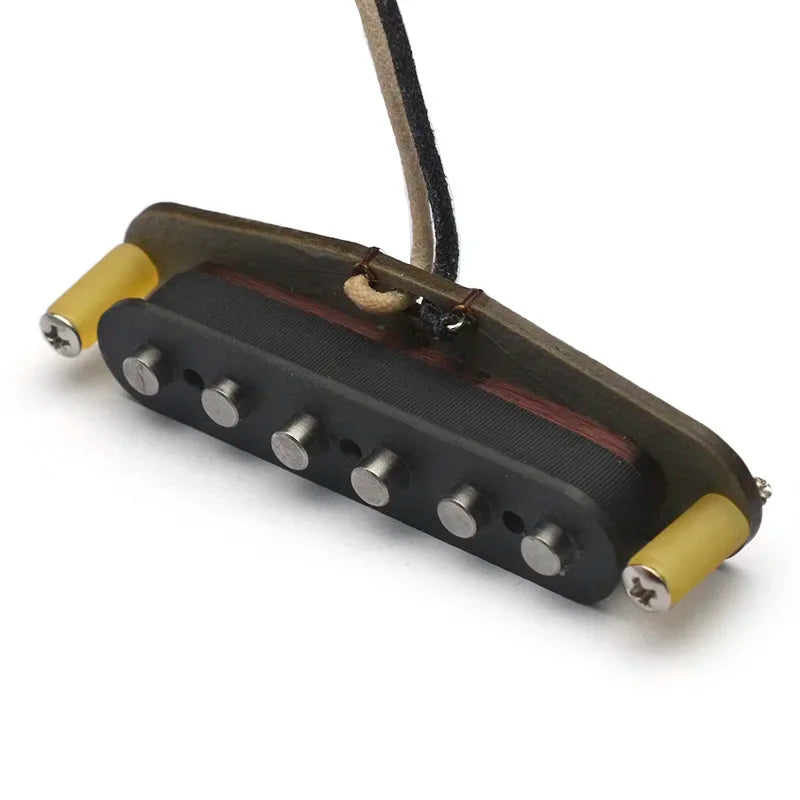

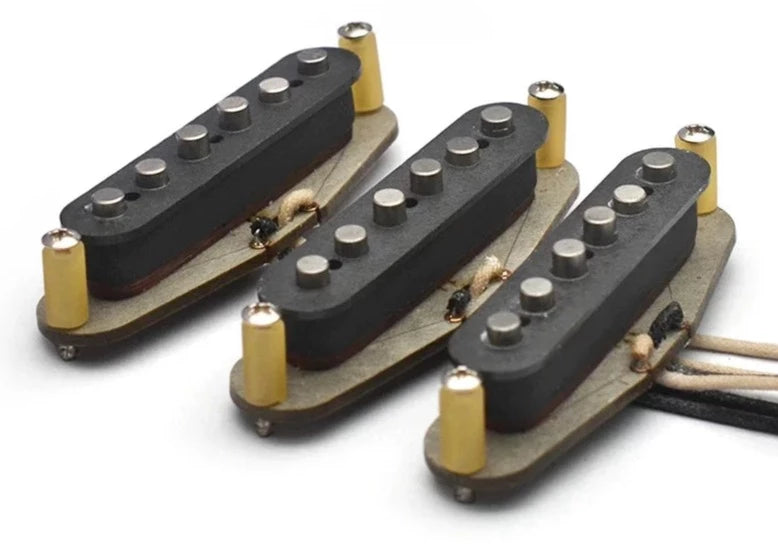

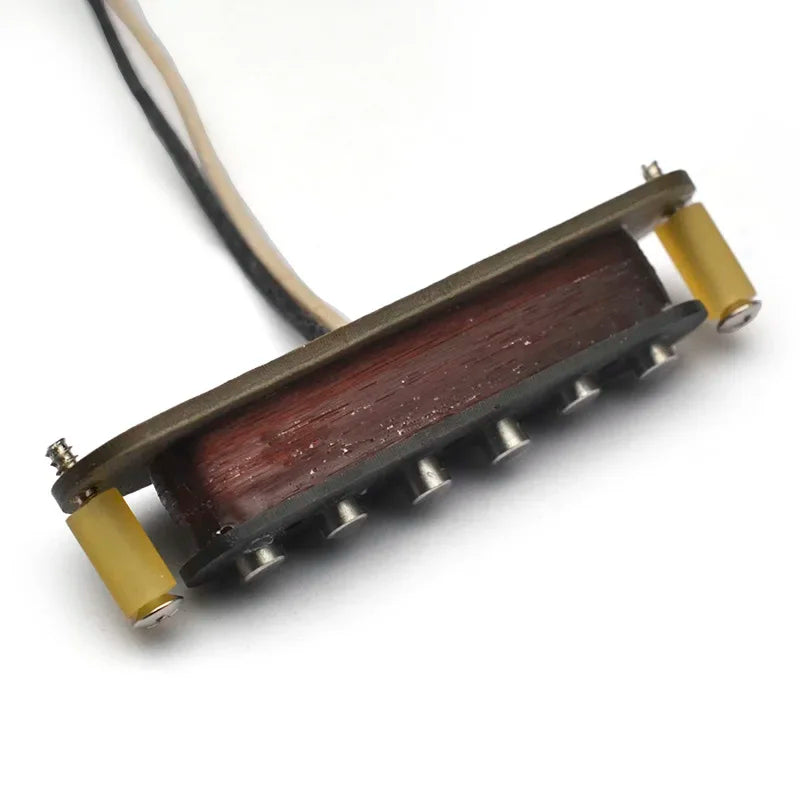

Vintage Electric Guitar Pickup

Vintage Electric Guitar Pickup

Regular price $30.99 USD
Regular price $36.99 USD Sale price $30.99 USD
Sale Sold out
Shipping calculated at checkout.

Capture the soulful tones of the '50s with our Alnico 5 Vintage Staggered Strat Style Electric Guitar Pickup.

Immerse yourself in the soulful tones of the '50s with our Alnico 5 Vintage Guitar Pickup. Handmade with precision, this pickup captures the essence of that era's sound, delivering a warm and rich tone that resonates with the authenticity of handmade craftsmanship.

Experience the magic of Alnico V magnets. Known for their powerful and clear sound, these magnets enhance sustain and dynamics. The Alnico Guitar Pickup is easy to install. The vintage staggered pole pieces ensure balanced string response across your guitar, bringing out the nuances of every note. It's not just a pickup; it's a sonic journey.

Crafted in the iconic Strat style, this pickup offers unparalleled versatility. Whether you're playing blues, rock, or jazz, the Electric Pickup adapts to your musical style. Its handmade construction ensures that each pickup is a unique work of art, adding character to your guitar.


  • Vintage Staggered for ST pickups uses hand-ground Alnico 5-rod magnets
  • Formvar mag wire with a special wind pattern to produce that bright, glassy, bell tone with all of the bounce and sparkle.
  • The treble attack is crisp and immediate, while the low end remains articulate and focused. Chords ring out with clear note-to-note separation.
  • Neck/Bridge position models will have the same output, wind direction, and magnetic polarity.


  • Position: Neck/Middle/Bridge Pickup.
  • Magnet: Alnico 5.
  • Pole Pieces: Staggered Top Pole Pieces.

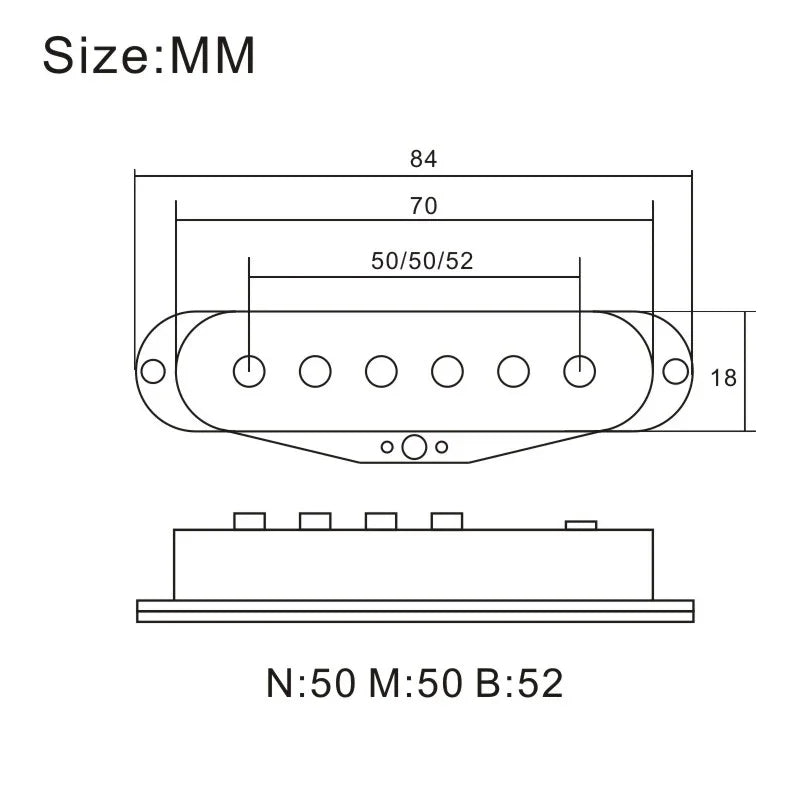

  • Pickup Pole Spacing: 50mm (Neck); 50mm(Middle); 52mm(Bridge).
  • Resistance:6.5K (Neck 6.5K); 6.8K (Middle 6-7K); 6.5K (Bridge 6-7K).
  • Bobbin: Fiber Bobbin, Grey Bottom, Black Top
  • Color: ABS Black, White, Cream
  • Cover Size: as the picture
  • Cable: Waxed Cloth Cable

Package Included:

  • 1/3 x Single Coil Pickup (Neck/Middle/Bridge Pickup)
  • 2/6 x Screws with 6 Tubings
