Vintage Radio Battery Eliminator Power Supply

Vintage Radio Battery Eliminator Power Supply

SKU:

Regular price $180.00 USD
Regular price $220.00 USD Sale price $180.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Vintage Radio Battery Eliminator for AC-Powered Listening

This vintage radio battery eliminator supplies A, B, and C voltages from AC wall power for compatible battery-operated tube radios and farm radios. Its line-isolated design accepts 95–252V AC at 50/60Hz and uses a USA Type A plug. Replace hard-to-find radio batteries with a permanent power source for regular listening, restoration work, testing, and tuning.

Bring a treasured radio back into your listening routine without recurring battery replacements, charging, or the risk of leakage from the batteries this supply replaces. Quiet operation, with no fan, buzz, or 60-cycle hum, lets the character of your restored radio take center stage.

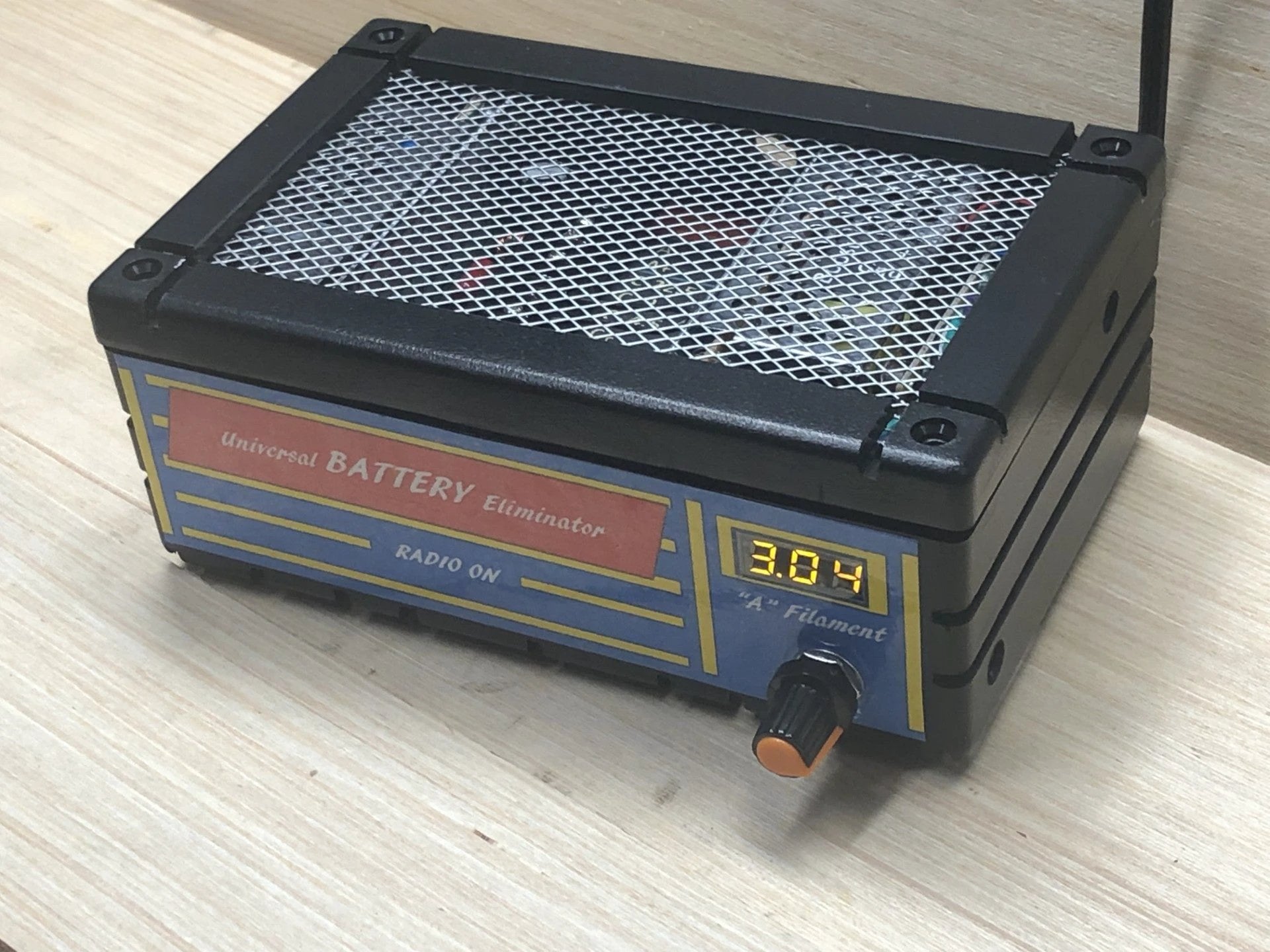

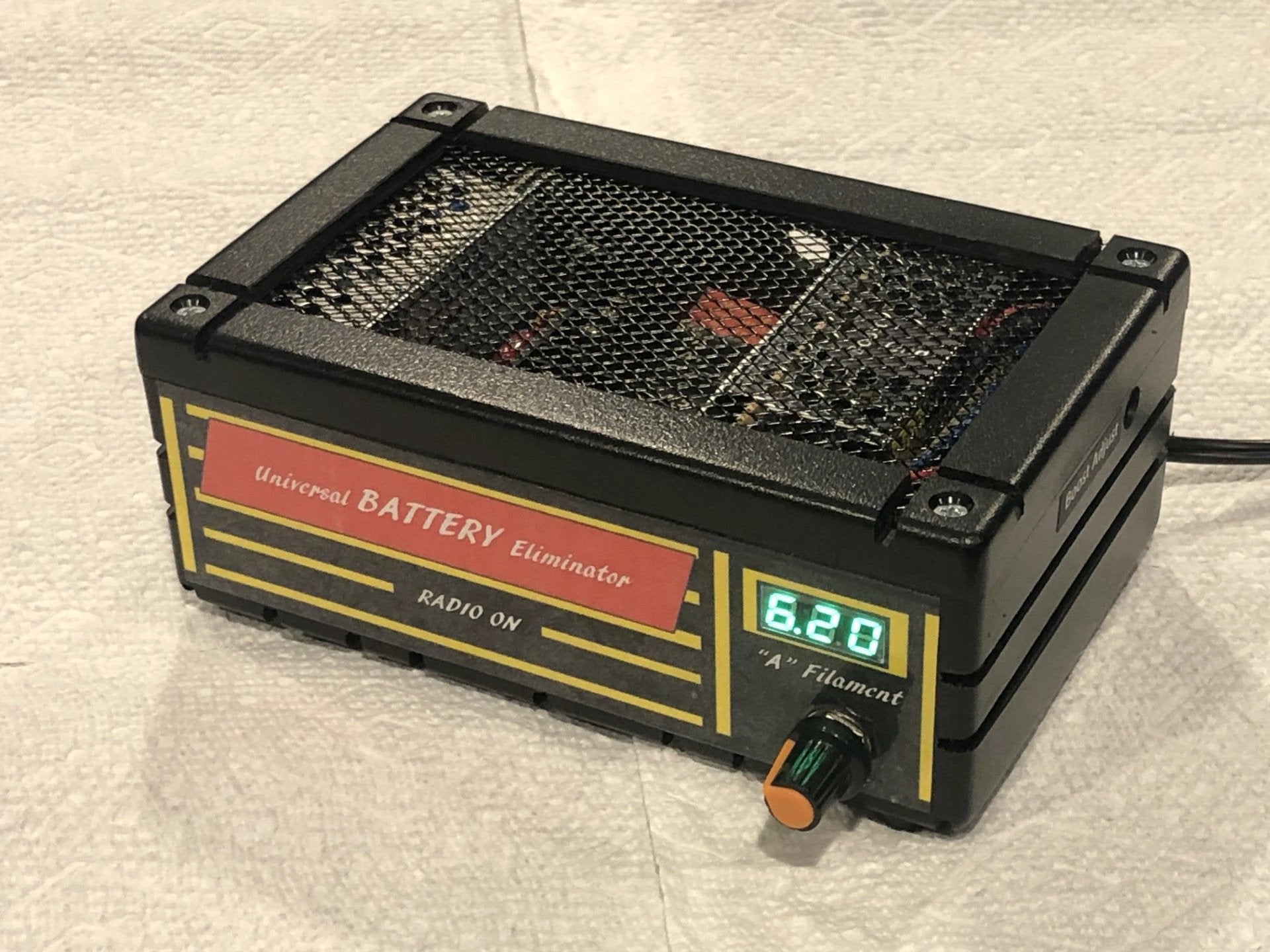

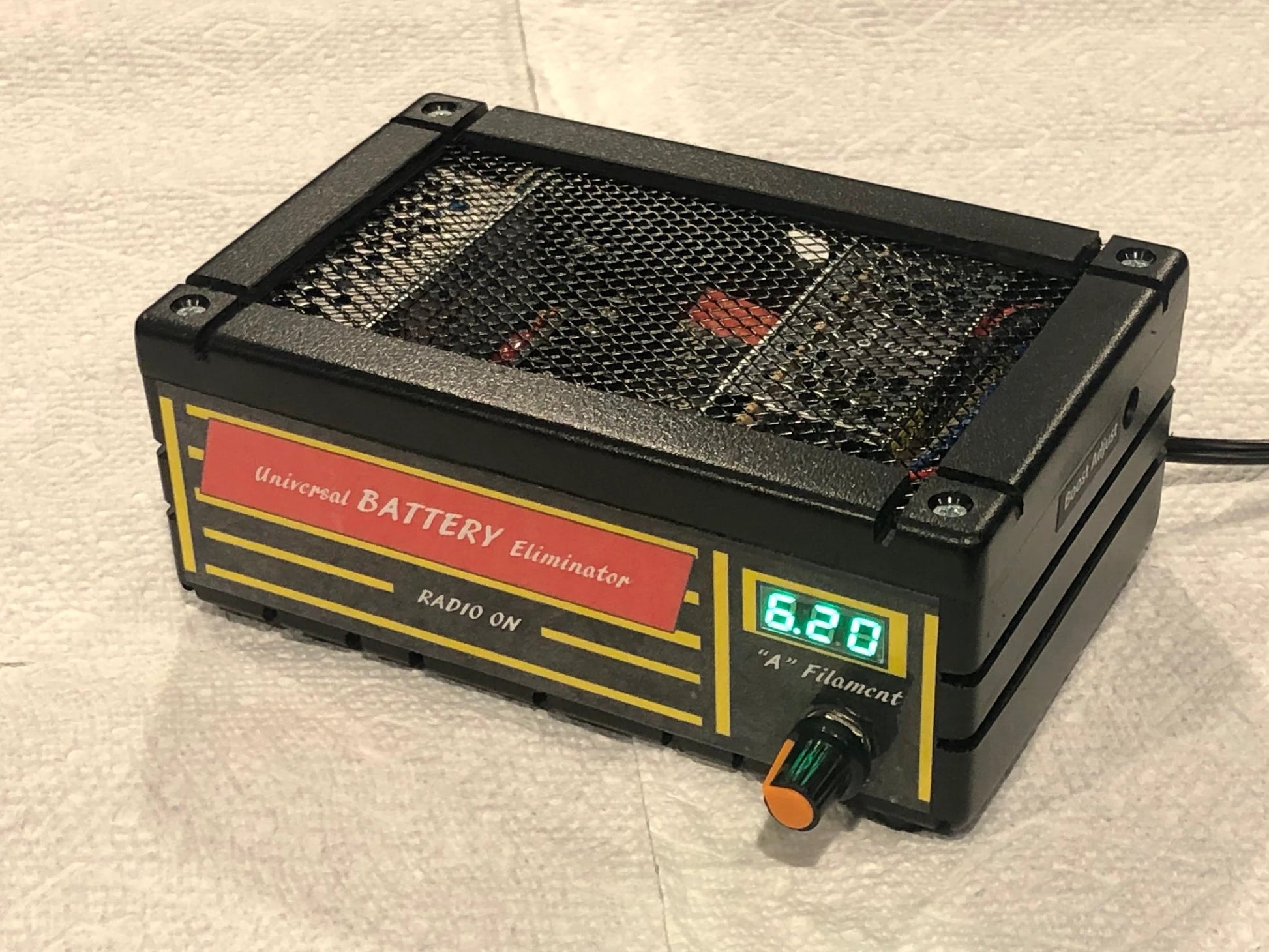

Adjustable Filament Supply with Built-In Voltmeter

The A supply powers tube filaments and is electrically isolated from the B and C supplies. Choose a 5.8–6.2V output rated at 2.5A, or 3A with the cover off, or use the front-panel adjustment for 1.25–5.4V at 2A. A built-in voltmeter displays the filament supply voltage, while soft start limits the initial surge current to cold filaments when the battery eliminator is switched on.

Multiple B plate-voltage outputs and C grid-bias outputs support a range of vintage radio circuits. The Radio ON LED indicates that the radio is drawing plate current from the 135V, 90V, or 67.5V supply. Thermal-overload and short-circuit protection are included, and standby consumption is less than 3W with the supply on and radio off.

Antique Radio Power Supply Specifications and Compatibility

Use this unit as a bench power supply or a permanent AC-powered battery replacement for compatible antique tube radios. Match your radio's voltage and wiring requirements to the specifications before connecting it. This listing is for the AC-powered battery eliminator, not the separate Battery Consolidator / Voltage Converter intended for portable, single-battery operation.

Technical specifications

  • Design: Line-isolated, universal A-B-C battery eliminator for most vintage battery-operated and farm tube radios.
  • A filament supply: 5.8–6.2V at 2.5A, or 3A with cover off; alternatively front-panel adjustable 1.25–5.4V at 2A, with soft start and built-in voltmeter. A supply isolated from B and C.
  • B plate supplies: +135V at 80mA; 90V at 60mA; 67.5V at 40mA; 45V/22.5V at 5mA.
  • C grid supplies: -4.5V, -9V, -22.5V at 2mA. C voltages are user-modifiable.
  • Input: 95–252V AC, 50/60Hz; USA Type A plug.
  • Indicator: Radio ON LED responds to plate current from the 135V, 90V, or 67.5V supply.
  • Standby power: Less than 3W with supply on and radio off.
  • Protection: Thermal overload and short circuit.
  • Operating temperature: 0–35°C.
  • Dimensions: 6.5 × 4 × 2.75 inches.
  • Weight: 28 oz.

Included: User manual and nine-conductor connection cable, with a 12-month guarantee. Several buyers have purchased this supply more than once.

For mobile operation or use without AC power, see the separate Battery Consolidator / Voltage Converter listing. That device uses a single battery and can also operate as a battery eliminator with an available linear AC/DC converter.

Ordering information: Made on demand; please allow up to 5 days for delivery.
